Monitoring SkyPilot API Server Metrics#

SkyPilot API Server can export Prometheus-compatible metrics and optionally deploy a one-click Prometheus + Grafana stack so that you get a fully functional monitoring solution out of the box.

Tip

Metrics are disabled by default. All the knobs described below can be set via helm upgrade during the initial installation or a later upgrade.

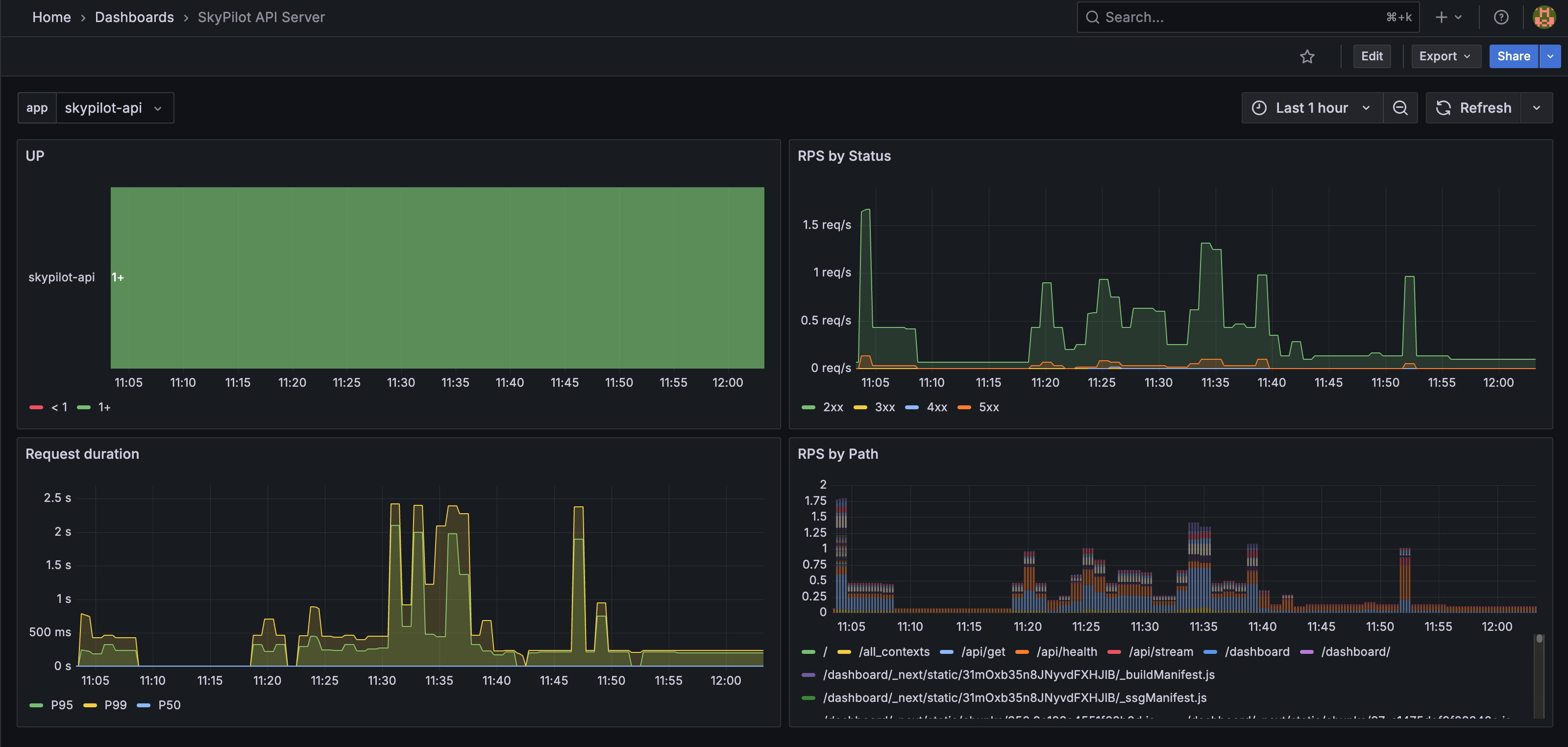

Grafana dashboard

Quickstart: enable the full metrics stack#

If you do not already have Prometheus or Grafana running, the quickest way to get started is to let the SkyPilot Helm chart deploy everything for you with a single command:

helm upgrade --install skypilot skypilot/skypilot-nightly --devel \
  --namespace skypilot \
  --create-namespace \
  --reuse-values \
  --set apiService.metrics.enabled=true \
  --set prometheus.enabled=true \
  --set grafana.enabled=true
Turn off GPU metrics scraping

The above command also configures Prometheus to scrape the SkyPilot API server’s /gpu-metrics endpoint. To disable scraping of /gpu-metrics, append --set prometheus.extraScrapeConfigs="" to the Helm command:

helm upgrade --install skypilot skypilot/skypilot-nightly --devel \
  --namespace skypilot \
  --create-namespace \
  --reuse-values \
  --set apiService.metrics.enabled=true \
  --set prometheus.enabled=true \
  --set prometheus.extraScrapeConfigs="" \
  --set grafana.enabled=true

You can access Grafana at the /grafana endpoint:

# Fetch the endpoint URL
HOST=$(kubectl get svc ${RELEASE_NAME}-ingress-nginx-controller --namespace $NAMESPACE -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
echo http://$HOST/grafana

Metrics exposed#

The endpoint /metrics on the SkyPilot API server exposes Prometheus-format metrics covering:

  • API server health — request rate, latency, queue wait time, per-worker memory.

  • Cluster inventory by workspace, user, status, cloud, and kind (cluster / managed_job / controller) — counts and GPU occupancy by accelerator model. Filter kind="cluster" to avoid overlap with managed-job clusters; sum across kinds for total resource usage.

  • Managed jobs by workspace, user, status, and cloud (all statuses including terminal; use delta(...) over a window for per-period success/failure rate).

You can also setup GPU metric collection to directly export GPU memory, utilization and power consumption from each compute cluster.

Forward metrics to an OpenTelemetry-based backend#

If your observability stack is built on OpenTelemetry (Datadog, Honeycomb, GCP Cloud Monitoring, Tempo + Mimir, etc.) rather than vanilla Prometheus, deploy an OpenTelemetry Collector as a bridge: its Prometheus receiver scrapes SkyPilot’s endpoints and an OTLP exporter forwards downstream.

The only SkyPilot-specific part is the scrape config — point it at the API server Service (<release>-api-service.<namespace>.svc on the metrics port, 9090 by default), and give /gpu-metrics a scrape_timeout larger than the API server’s per-context federation budget (20 s):

receivers:
  prometheus:
    config:
      scrape_configs:
        - job_name: skypilot-api
          metrics_path: /metrics
          static_configs:
            - targets: ['<release>-api-service.<namespace>.svc:9090']
        - job_name: skypilot-gpu
          metrics_path: /gpu-metrics
          scrape_timeout: 25s   # must exceed the 20s per-context budget
          static_configs:
            - targets: ['<release>-api-service.<namespace>.svc:9090']

Configure the processors, OTLP exporter, pipelines, and Collector deployment mode per the Collector configuration docs — those are generic OpenTelemetry concerns.

Using existing Prometheus / Grafana#

The Helm chart introduces three new top-level blocks to provide flexibility in how you set up Prometheus and Grafana:

  • apiService.metrics.enabled – enables the /metrics HTTP endpoint on the SkyPilot API server.

  • prometheus.enabled – deploys a prometheus instance configured to scrape the /metrics endpoint on the SkyPilot API server.

  • grafana.enabled – deploys Grafana with a pre-baked dashboard to display the SkyPilot API server metrics from prometheus.

All three default to false so you can mix & match:

  • Fully managed Prometheus + Grafana – set apiService.metrics.enabled: true, prometheus.enabled: true, and grafana.enabled: true. The chart will deploy a fully managed Prometheus + Grafana stack.

  • External Prometheus / Grafana – set only apiService.metrics.enabled: true. The API server will expose the metrics on the /metrics endpoint and the pod will be annotated with prometheus.io/scrape: true to enable automatic scraping by prometheus.

  • External Grafana, internal Prometheus – enable prometheus but disable grafana. Point your existing Grafana at the Prometheus service created by the chart.
