Monitoring Cluster-wide GPU Metrics#

SkyPilot provides native integration with NVIDIA DCGM to surface real-time GPU metrics directly in the SkyPilot dashboard.

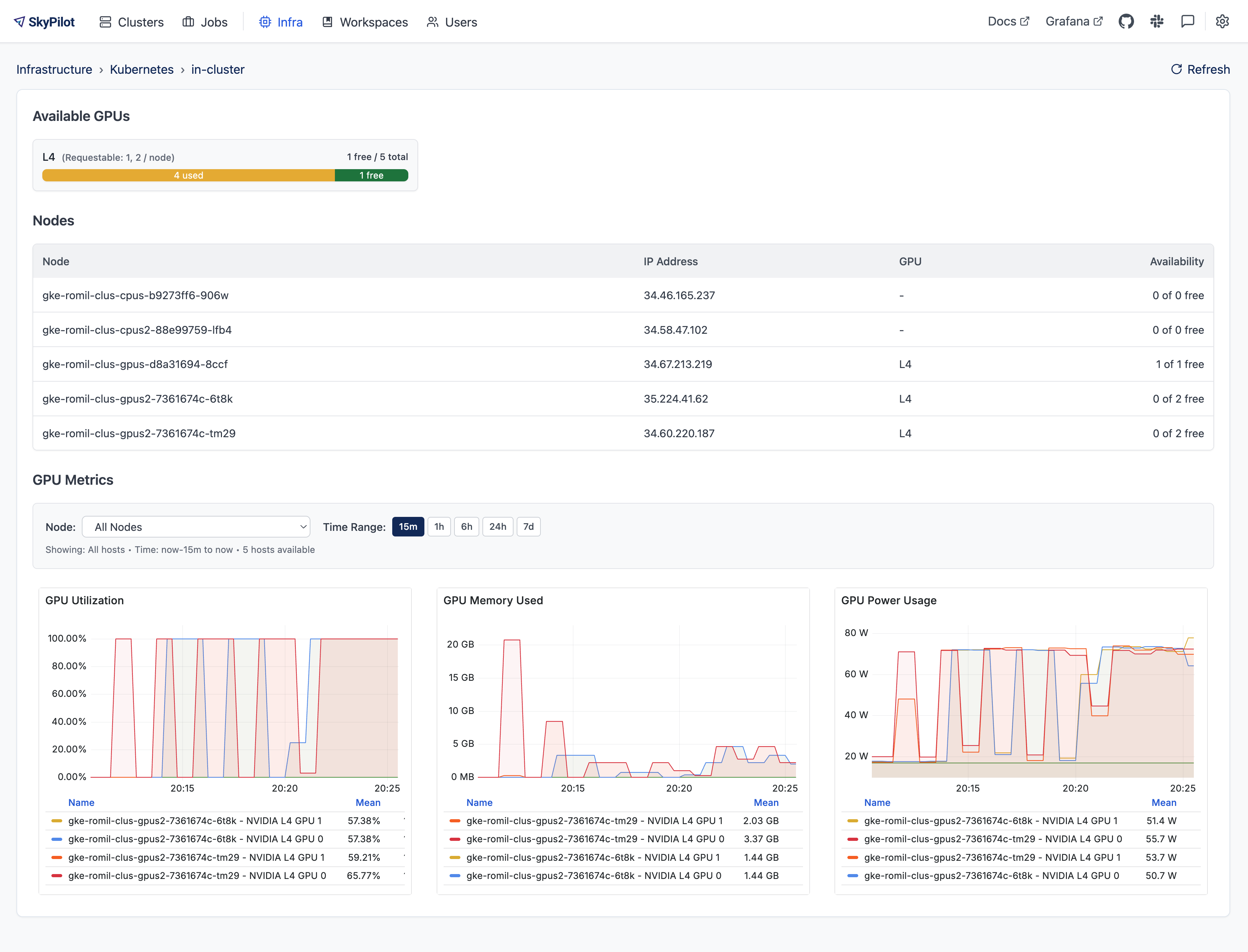

GPU metrics dashboard

Prerequisites#

Before you begin, make sure your Kubernetes cluster meets the following requirements:

  • NVIDIA GPUs are available on your worker nodes.

  • The NVIDIA device plugin and the NVIDIA GPU Operator are installed.

  • DCGM-Exporter is running on the cluster and exposes metrics on port 9400. Most GPU Operator installations already deploy DCGM-Exporter for you.

If this is the Kubernetes cluster you will be deploying the SkyPilot API server on, these are the only prerequisites. Otherwise, make sure to also helm install the SkyPilot Prometheus server using the following command:

helm upgrade --install skypilot skypilot/skypilot-prometheus-server --devel \
 --namespace skypilot \
 --create-namespace

Set up DCGM metrics scraping#

Deploy the SkyPilot API server with GPU metrics enabled:

helm upgrade --install skypilot skypilot/skypilot-nightly --devel \
  --namespace skypilot \
  --create-namespace \
  --reuse-values \
  --set apiService.metrics.enabled=true \
  --set prometheus.enabled=true \
  --set grafana.enabled=true

The flags do the following:

  • apiService.metrics.enabled – turn on the /metrics endpoint in the SkyPilot API server.

  • prometheus.enabled – deploy a Prometheus instance pre-configured to scrape both the SkyPilot API server and DCGM-Exporter.

  • grafana.enabled – deploy Grafana with an out-of-the-box dashboard that will be embedded in the SkyPilot dashboard.

What metrics are exposed?#

By default, the SkyPilot dashboard exposes the following metrics:

  • GPU utilization

  • GPU memory usage

  • GPU power usage

However, all metrics exported by DCGM exporter can be accessed via Prometheus/Grafana including GPU errors, NVLink stats and more.
