Deploy SkyPilot on existing machines#

SkyPilot supports bringing your existing machines, whether they are on-premises or reserved instances on a cloud provider.

Given a list of IPs and SSH credentials, use sky ssh up to turn them into a SSH Node Pool. It becomes an infra choice on which you can launch clusters, jobs, or services, just like a regular cloud provider.

Deploying SkyPilot on existing machines — Given a list of IP addresses and SSH keys, `sky ssh up` will install necessary dependencies on the remote machines and configure SkyPilot to run jobs and services on the cluster.#

Quickstart#

Write to ~/.sky/ssh_node_pools.yaml on the host of your API server (refer to Defining SSH Node Pools if you are running a remote API server):

# ~/.sky/ssh_node_pools.yaml

my-cluster:  # Give the pool a name.
   hosts:
     - 1.2.3.4  # Ensure `ssh 1.2.3.4` works.
     - 1.2.3.5

my-box:
  hosts:
    - hostname_in_ssh_config  # Ensure `ssh hostname_in_ssh_config` works.

Run sky ssh up to deploy SkyPilot on the machines:

$ sky ssh up

Check that the SSH Node Pools are set up :

$ sky check ssh

...
🎉 Enabled infra 🎉
  SSH [compute]
     SSH Node Pools:
     ├── my-cluster
     └── my-box

Enabled SSH Node Pools are listed in sky status:

$ sky status

Enabled Infra: ssh/my-cluster, ssh/my-box, ...
...

Launch compute on enabled SSH Node Pools, using --infra ssh/<node_pool_name>:

$ sky launch --infra ssh/my-cluster --gpus H100:1 -- nvidia-smi
$ sky launch --infra ssh/my-box -- echo "Hello, world!"

Equivalently, use resources.infra: ssh/<node_pool_name> in a task YAML:

resources:
  infra: ssh/my-cluster

See more customization options and details about SSH Node Pools in the rest of this guide.

Defining SSH Node Pools#

In ~/.sky/ssh_node_pools.yaml, you can define multiple SSH Node Pools, each with a list of IPs and SSH credentials.

If passwordless SSH is enabled, you can simply list the IPs or hostnames:

# ~/.sky/ssh_node_pools.yaml

my-cluster:
   hosts:
     - 1.2.3.4
     - another-node

Alternatively, you can customize SSH options, including:

SSH user
SSH private key
SSH password (if passwordless sudo is not enabled)

Example:

# ~/.sky/ssh_node_pools.yaml

my-cluster:
   # Defaults for all nodes in this pool (optional).
   user: root
   identity_file: ~/.ssh/id_rsa
   password:  # Optional; if passwordless sudo is not enabled.

   # Override defaults for a specific node.
   hosts:
     - ip: 1.2.3.4
       user: alice
       identity_file: alice-key
       password: alice-password
     - ip: 5.6.7.8
       user: bob
       identity_file: bob-key
       password: bob-password

Apply ~/.sky/sky_node_pools.yaml to the API server by the following steps for different setup:

Local API server

If you did not start an API server instance or use a local API server, set ~/.sky/ssh_node_pools.yaml on your local machine.

Helm Deployment

If you use a Helm Deployment, save the config to a ssh_node_pool.yaml file on your local machine and run:

# RELEASE_NAME and NAMESPACE are the same as the ones used in the helm deployment
helm upgrade --install $RELEASE_NAME skypilot/skypilot-nightly --devel \
--namespace $NAMESPACE \
--reuse-values \
--set-file apiService.sshNodePools=/your/path/to/ssh_node_pools.yaml

If your ssh_node_pools.yaml requires SSH keys, you can create a secret that contains the keys and set the apiService.sshKeySecret to the secret name:

SECRET_NAME=apiserver-ssh-key
# The NAMESPACE should be consistent with the API server deployment
kubectl create secret generic $SECRET_NAME \
   --namespace $NAMESPACE \
   --from-file=id_rsa=/path/to/id_rsa \
   --from-file=other_id_rsa=/path/to/other_id_rsa

helm upgrade --install $RELEASE_NAME skypilot/skypilot-nightly --devel \
   --namespace $NAMESPACE \
   --reuse-values \
   --set apiService.sshKeySecret=$SECRET_NAME

Note

SSH hosts configured on your local machine will not be available to the API server. It is recommended to set the SSH keys or password in the ssh_node_pools.yaml file for helm deployment.

VM Deployment

If you use a VM Deployment, set ~/.sky/ssh_node_pools.yaml on the API server host. This is usually only available to the administrator who deployed the API server.

If any SSH key is needed, you should also set it on the API server host.

Observability of SSH Node Pools#

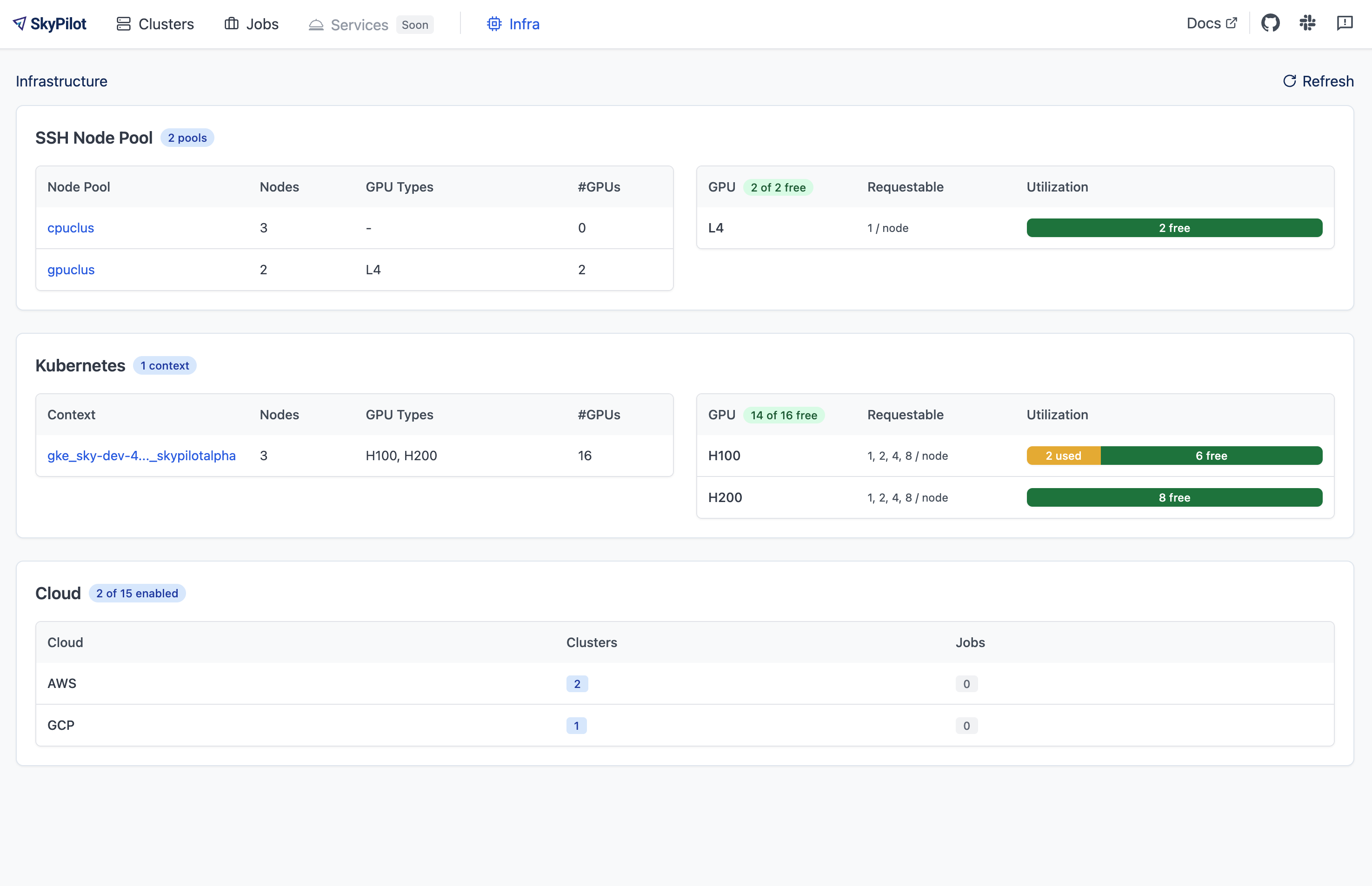

Open sky dashboard and click on the Infra tab to see an overview of all SSH Node Pools:

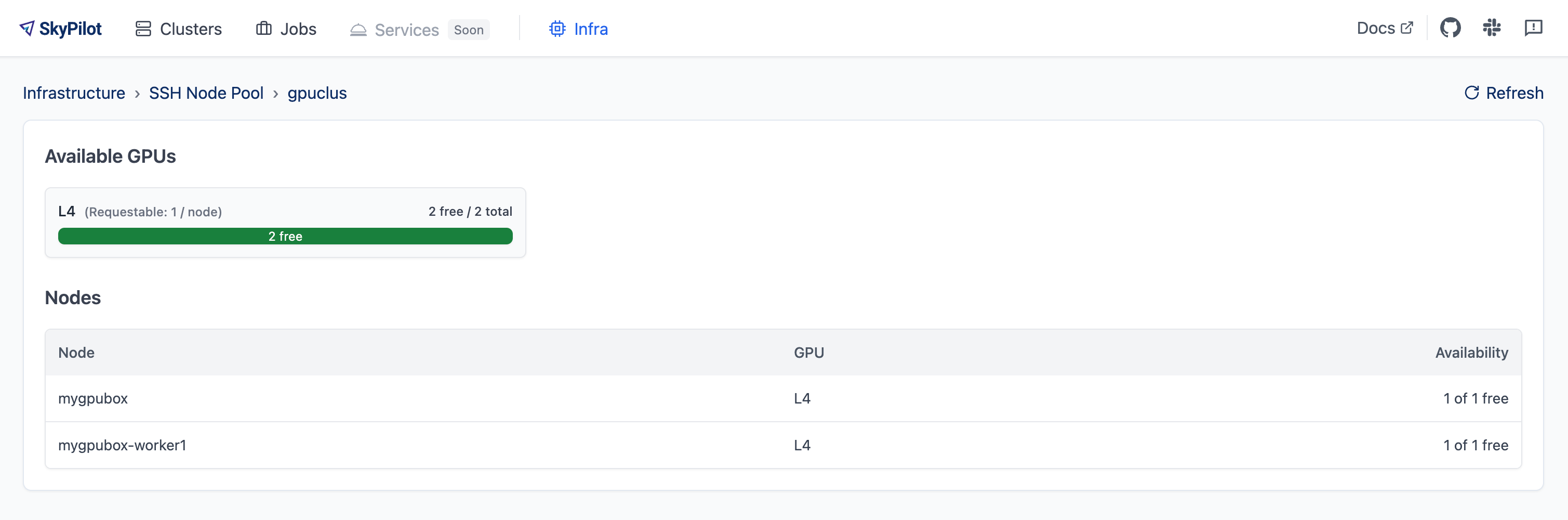

Click on an SSH Node Pool to see more details, including per-node GPU availability:

To use the CLI to see what GPUs are available, run:

$ sky show-gpus --infra ssh
$ sky show-gpus --infra ssh/my-cluster

Using multiple SSH Node Pools#

You can set up multiple SSH Node Pools as shown above.

Once set up, you can launch compute on either a specific SSH Node Pool, or let SkyPilot automatically select one with available resources.

# Run on cluster1
sky launch --infra ssh/cluster1 -- echo "Running on cluster 1"

# Run on cluster2
sky launch --infra ssh/cluster2 -- echo "Running on cluster 2"

# Let SkyPilot automatically select the cluster with available resources.
sky launch --infra ssh -- echo "Running on SkyPilot selected cluster"

Cleanup#

To remove all state created by SkyPilot on your machines, run sky ssh down.

$ sky ssh down

This removes the SkyPilot runtime on your machines and disables the SSH Node Pools.

Details: Prerequisites#

SkyPilot API server host:

Remote machines:

Debian-based OS (tested on Debian 11)
SSH access from SkyPilot API server host to all remote machines
All machines in a SSH Node Pool must have network access to each other
